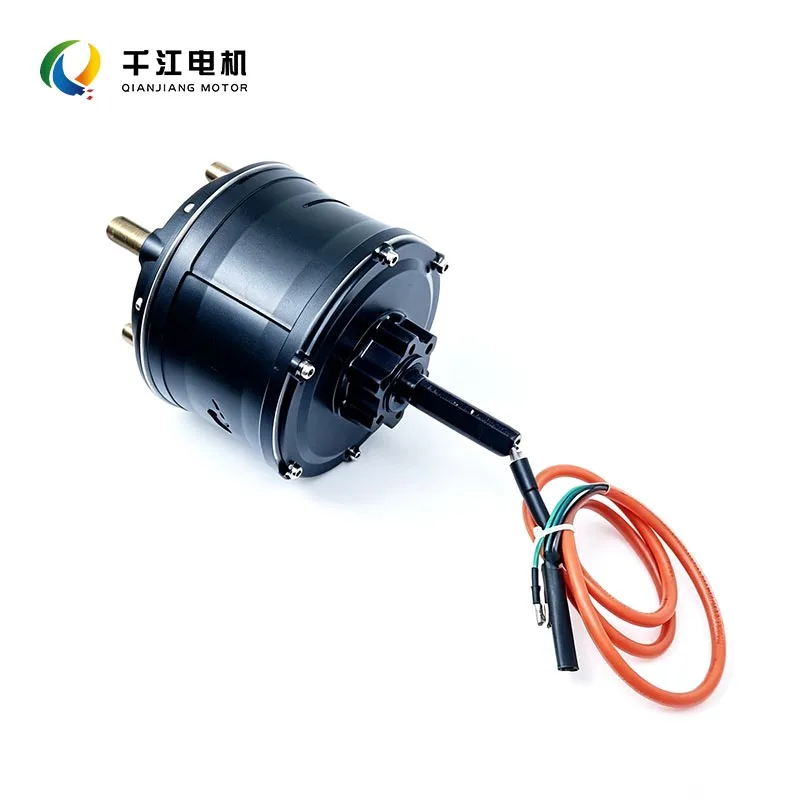

Golf Cart Hub Motor

The golf cart hub motor is specifically tuned for golf course turf, gentle slopes, muddy terrain, and gravel paths. It features high torque at low speeds, smooth acceleration, and quiet operation.

It supports forward and reverse rotation, regenerative braking, and an electromagnetic parking brake. When paired with a dedicated FOC hub motor controller, it enables independent dual-wheel drive and an electronic differential function.

Core Advantages

1. Ultra-High Low-Speed Torque

The reduction gear version can provide peak torque of 50–150 N·m, delivering sufficient torque even at low rotational speeds. It provides strong starting performance when carrying passengers or climbing slopes and on wet grass, reducing wheel spin and slipping, making it suitable for undulating golf course terrain.

2. Golf-Course-Level Silent Tuning

The electromagnetic winding design is optimized to reduce cogging torque. FOC sine-wave operation provides minimal vibration during starting, stopping, and low-speed driving. The motor operates with low noise, meeting the quiet-environment requirements of golf courses without disturbing golfers.

3. High-Strength IP67 Waterproof and Dustproof Protection

The entire motor housing adopts sealed potting, with waterproof connectors at the cable outlets. It can handle rain, dew, wet grass, mud, and dust, providing all-weather outdoor operation and protection against moisture and water pressure.

Outdoor parking does not require concern about motor water damage.

4. Reinforced Pure Copper Windings

High-purity, high-temperature-resistant enameled wire is used with reinforced stator windings. During frequent starting and stopping on golf courses and long periods of course operation, temperature rise remains low.

Under continuous heavy loads, the motor is less prone to demagnetization and excessive heat-induced power attenuation, extending motor service life.

5. Multiple Brake Options

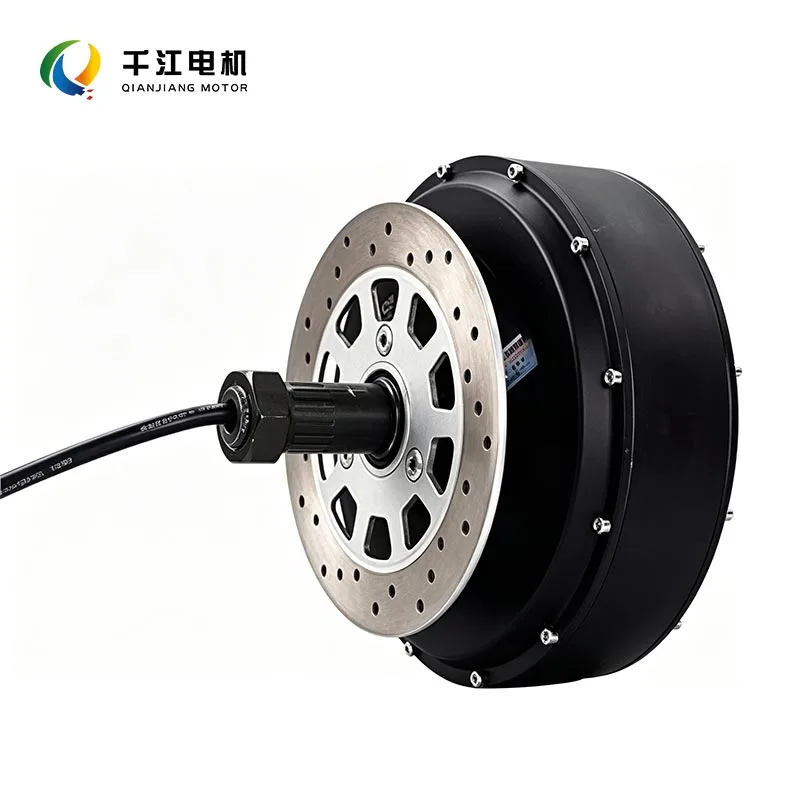

Mechanical drum brakes, disc brakes, and built-in electromagnetic parking brakes are available. When power is disconnected, the wheels can be locked, preventing the vehicle from rolling on slopes and providing safer parking during uphill and downhill operations.

6. Modular Installation

The bolt mounting holes are compatible with most golf carts on the market. The single-axle output structure makes installation simple and is suitable for new vehicle development and replacement or upgrading of old vehicle motors.

Customization of shaft diameter, mounting hole positions, and cable outlet direction is supported.

7. Energy Saving and Extended Range per Charge

The golf cart hub motor provides high operating efficiency and supports regenerative braking when the accelerator is released. Lower energy consumption during grass driving allows longer operating range after a full charge, reducing the need for frequent charging on the golf course.

Detailed Technical Specifications

Functional Details

1. Smooth Start-Stop Tuning

Specifically tuned for low-speed golf cart operation, the motor provides soft-start output without sudden acceleration, improving passenger comfort. Low-speed crawling is stable and smooth, making it suitable for slow course operation and approaching golf holes.

2. Electronic Differential Compatibility

For dual-hub-motor drive versions, when paired with a dual-drive controller, the left and right wheels automatically adjust their rotational speeds during cornering. Turning on grass is smooth, with the inner wheel slowing down and the outer wheel accelerating, reducing tire scraping against the grass.

3. Downhill Regenerative Braking

Regenerative braking is activated when the accelerator is released during downhill operation, providing deceleration while reducing brake pad wear. Downhill speed remains controllable, improving safety on long gradual slopes while recovering electrical energy to extend driving range.

4. Forward/Reverse Control and Speed Limiting

Supports forward and reverse operation, with speed limiting during reversing. The maximum speed can be customized to comply with golf course speed limits and reduce safety risks caused by excessive speed.

5. Stable and Reliable Operation

Stable Hall signals and flexible wiring harnesses provide reliable operation. The motor is resistant to bumps and vibration during long-term outdoor operation with frequent start-stop cycles. Motor housing is made of die-cast aluminum alloy for fast heat dissipation and impact resistance.

Materials and Manufacturing

1. High-Performance NdFeB Permanent Magnets: High-temperature resistant and less prone to demagnetization, maintaining stable power output during long-term use.

2. Reinforced Silicon Steel Stator Core: Low losses and low heat generation.

3. Waterproof, Wear-Resistant, Flexible, and Flame-Retardant Wiring Harness: Equipped with waterproof aviation connectors.

4. High-Precision Low-Noise Bearings: Dustproof and sealed to prevent grass, mud, and sand from easily entering the bearings.

5. Anti-Corrosion Sandblasted Housing: Resistant to rust and corrosion during outdoor exposure to sunlight and rain.

Application Scenarios

● Electric golf carts, sightseeing golf carts, OEM supply for golf courses, and replacement/upgrading of old motors

● Sightseeing vehicles in scenic areas, park utility vehicles, and electric patrol vehicles for residential communities

● Farm vehicles, beach mobility vehicles, and recreational low-speed electric utility vehicles

Installation Precautions

1. Align the wheel hub mounting bolts during installation and tighten them securely. Position the cable outlet downward to prevent accumulated water from entering the motor through the wiring harness.

2. It is recommended to use the dedicated FOC sine-wave controller to achieve optimal torque and low-noise performance. For dual-wheel drive, select an electronic differential controller.

3. For frequent use on wet grass or in rainy conditions, select the IP67 waterproof version.

4. For slope parking requirements, the version with a built-in electromagnetic brake can be selected.

FAQ

Q: Can it directly replace the old motor on an existing golf cart?

A: It can be directly installed as long as the shaft diameter and mounting hole positions are confirmed to match. The 48V version is compatible with most older golf cart power systems.

Q: Is the motor noisy? Is it suitable for golf courses?

A: The motor has been optimized for quiet electromagnetic operation and produces very low noise at low speeds, making it suitable for quiet golf course environments.

Q: Can it be used continuously on wet grass or in rainy weather?

A: The IP67 version uses a fully sealed motor structure and provides protection against rain, dew, and splashing shallow water, making it fully suitable for normal golf course grass conditions.

Q: Can the vehicle speed be controlled and the maximum speed limited?

A: When paired with the corresponding hub motor controller, the maximum speed, starting speed, and acceleration rate can be freely configured.

After-Sales Support

Each motor undergoes load aging testing and waterproof testing before leaving the factory. We provide installation and wiring instructions as well as technical support for parameter adjustment.

Stock products are available, and customization of dimensions, power ratings, and brake configurations is supported. Complete accessories are available, with long-term after-sales technical support provided.
