Electric Motorcycle Motors Manufacturer with Advanced Engineering

Qianjiang Motor is a professional hub motor manufacturer with over a decade of experience. The company holds ISO 9001 and CE certifications and has developed more than 80 motor models. Our electric motorcycle motors are characterized by long service life, high energy efficiency, low heat generation, quiet operation, and a wide speed regulation range.

Product Types

Categorized by structure, our electric motorcycle motors primarily include hub motors, mid-drive motors, and differential rear axle motors.

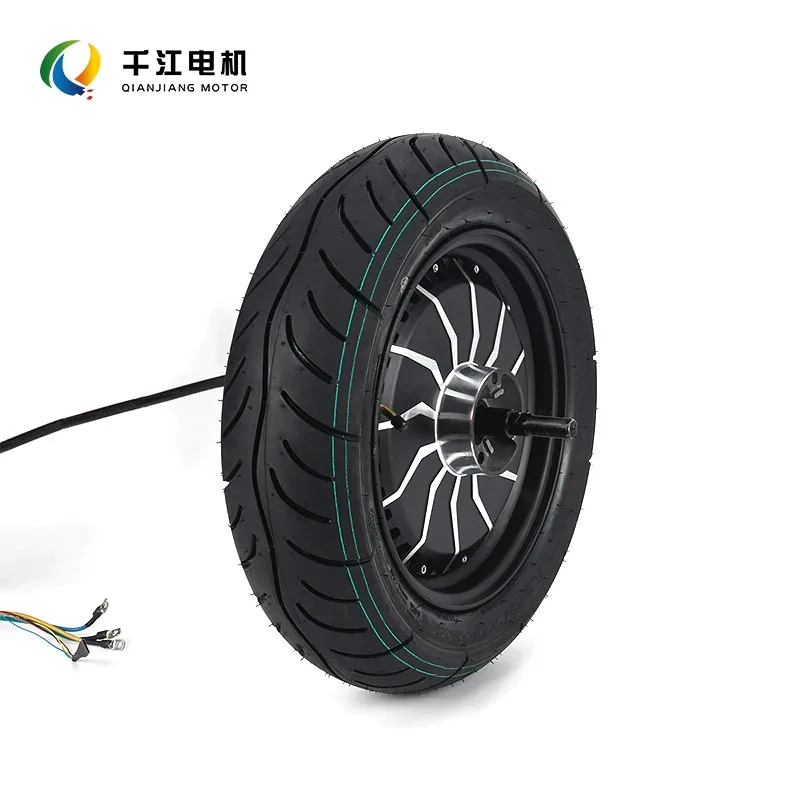

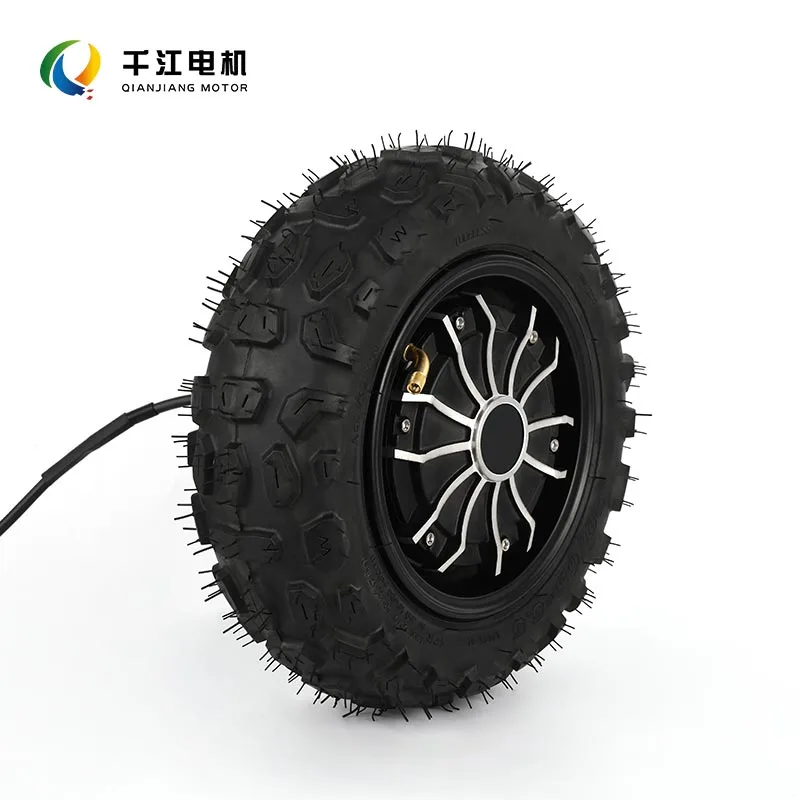

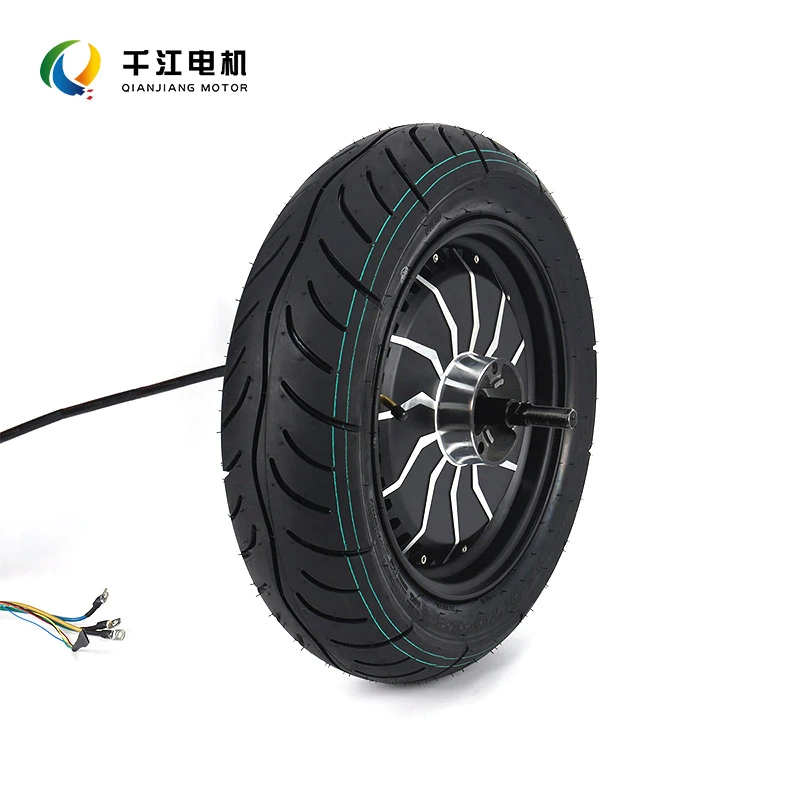

Hub Motors: The most widely used type; integrated directly into the wheel hub, these are available in spoked and integrated (cast) designs.

Mid-drive Motors: Commonly used in high-end sports electric motorcycles, mounted in the center of the frame, they drive the rear wheel via a chain or belt.

Differential Rear Axle Motors: Typically used in electric tricycles or cargo vehicles; combined with an integrated differential rear axle, they drive both rear wheels simultaneously.

Product Structure

1. Stator: Fixed central shaft, laminated silicon steel sheets, three-phase enameled windings, and Hall position sensors (5 Hall signal wires).

2. Rotor: Hub housing, permanent magnet steel, and sealed bearings at both ends.

3. Sealing Structure: End covers and sealing rings. Standard products achieve IP65/IP67 waterproof and dustproof protection.

4. Wiring: Three thick phase wires (U/V/W) + Hall signal wires.

Working Principle

Battery Power Supply → The controller receives the throttle signal + motor Hall position signals → The controller converts the power into three-phase AC to drive the motor stator windings → The magnetic field drives the rotor to rotate, causing the wheel to operate.

Matching principle for the three components: Motor power < controller current-limit power. If the controller current limit is too low, it will restrict the motor's power. If the controller capacity is too high, it can easily burn out the motor windings.

Product Parameters

Suitable Applications for the Motor

Why Choose Qianjiang Motor

1. Over 10 Years of Professional Experience

Starting with hub motor technology, Qianjiang Motor has more than 10 years of R&D and mass production experience and has developed over 80 types of motor models.

2. Strong Research and Development Capabilities

We not only serve the civilian market but also provide long-term system-level solutions of “motor + electronic control + battery” for top research institutions. Our partners include Tsinghua University, Harbin Institute of Technology, Nanjing University of Aeronautics and Astronautics, Chongqing University, Southeast University, Jilin University, and others.

3. Customization and Engineering Services

Qianjiang Motor has a complete R&D team covering motor structure optimization, high-torque design, efficient heat dissipation, controller matching, and software and hardware development.

We support the complete process from concept design → 3D prototype development (Prototype) → small-batch trial production → large-scale mass production under ISO 9001 standards.

4. International Certifications and Quality Control System

The factory fully implements the ISO 9001 quality management system.

Our products are CE certified, with dozens of independently owned intellectual property rights, and meet the strict market entry standards of Europe, North America, and Southeast Asia.

FAQ

Q1: What parameter customization services do you provide?

A: Qianjiang Motor has a comprehensive R&D and manufacturing system and supports in-depth customization:

Electrical Parameters: Operating voltage (24V / 36V / 48V / 60V / 72V, etc.), rated power, rated speed, and torque.

Mechanical Structure: Wheel diameter (from 6 inches to 22 inches, etc.), shaft length, dropout spacing, mounting hole positions, and tire compatibility (solid tires/pneumatic tires).

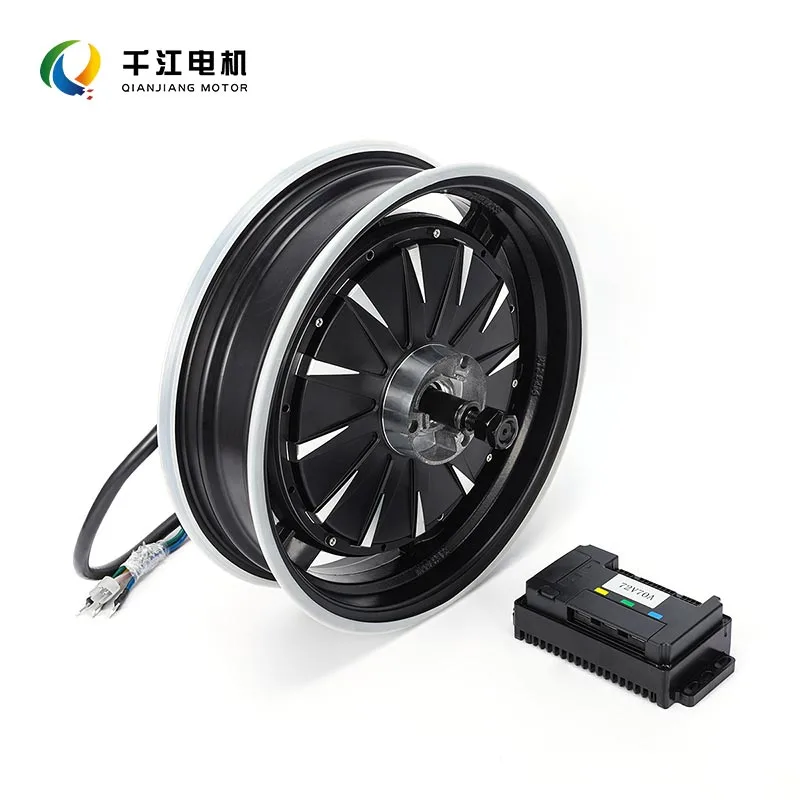

System Configuration: Matching sine wave controllers, speed control throttles, and battery systems can also be provided.

Q2: What is the difference between your electric motorcycle motor and a fuel-powered motorcycle motor?

Q3: Does an electric motorcycle motor require a high level of maintenance?

A: Compared with traditional transmission systems, hub motors require relatively little maintenance.

Daily maintenance recommendations:

① Regularly check the motor connection wires.

② Avoid washing the motor connectors with high-pressure water for long periods.

③ Keep the hub surface clean.

④ Check for abnormal noise or vibration.
