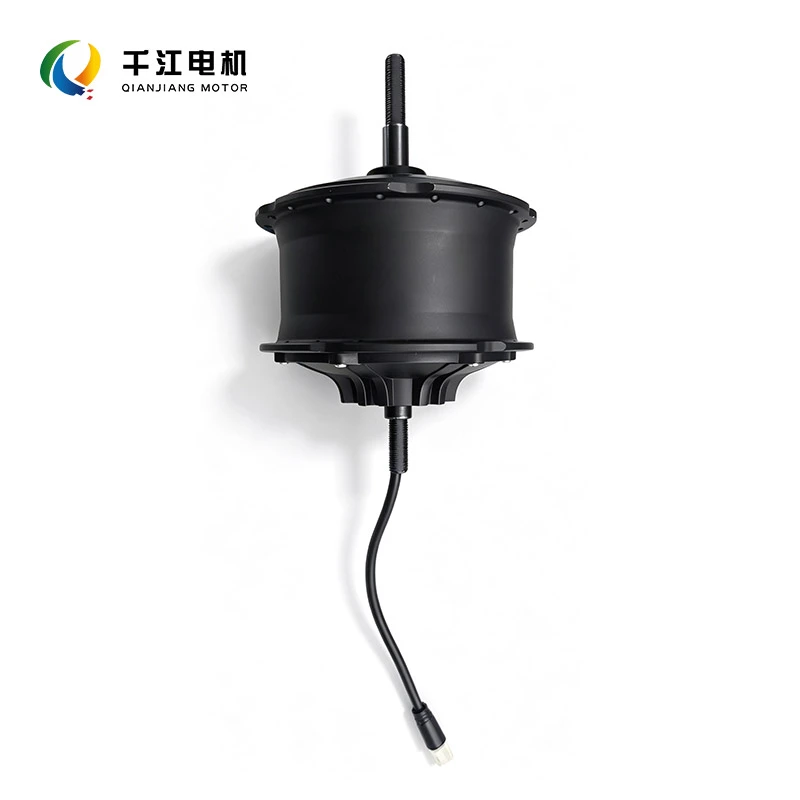

Planetary Gear Reduction Hub Motor

Designed specifically for mountain climbing, heavy-load transportation, and construction and agricultural equipment! Unlike ordinary direct-drive motors, Planetary Gear Reduction Hub Motor adopts a precision planetary gear reduction structure to achieve the dual advantages of "high torque at low speed and extended range at high speed," solving the problems of insufficient climbing power, overheating under heavy loads, and wheel slipping during startup commonly found in direct-drive motors. It is an upgraded motor specially designed for heavy loads, multiple slopes, and harsh road conditions.

Product Advantages

1. Planetary Gear Reduction Structure

It adopts a multi-stage reduction transmission structure consisting of a sun gear + planetary gears + ring gear, with the load evenly distributed among multiple planetary gears. Compared with ordinary direct-drive motors, the torque is significantly increased.

It provides strong low-speed starting power, smooth starts, and stable climbing, easily handling steep slopes of up to 35°, fully loaded cargo transportation, and heavy-load operation on muddy construction sites, completely solving the problems of insufficient climbing power and motor strain under heavy loads found in direct-drive motors.

2. Multi-Point Load Distribution

Traditional single-gear reduction systems concentrate the load, making them prone to broken teeth and wear. This model uses multiple planetary gears for synchronized transmission, providing even force distribution and reducing pressure on individual contact points.

Gear surface wear is extremely low. Under long-term, high-frequency heavy-load, vibration, and impact conditions, it is less likely to suffer from broken teeth or jamming, with overall structural strength and impact resistance far exceeding those of ordinary reduction motors.

3. Coaxial Planetary Transmission

The coaxial planetary transmission structure has extremely low friction loss, with transmission efficiency of up to 95% or above, far exceeding that of ordinary worm gear reduction motors. It provides high power conversion efficiency and low unnecessary energy loss.

Under the same battery capacity, it saves more power during climbing and heavy-load operation without significant loss of range under heavy loads, balancing both power and range.

4. Precision Low-Noise Gears

It uses high-precision gear grinding technology and flexible meshing design, with small gear clearances and smooth transmission, avoiding gear impact noise and jamming. Compared with ordinary reduction motors, it operates with lower noise and less vibration, providing smooth starting and shifting for a better riding experience when carrying passengers or cargo.

5. Fully Enclosed Waterproof and Dustproof Design

The motor uses a thickened die-cast aluminum alloy housing with multiple sealing rings and an integrated wire outlet waterproofing design. The entire unit achieves an IP54 waterproof and dustproof rating.

It effectively resists rain, road water, construction-site sand and dust, and agricultural dust, preventing problems such as water ingress and short circuits, gear rust, and Hall sensor damage, allowing stable operation in harsh outdoor conditions.

6. Wide Speed Adaptability

It perfectly achieves the dual characteristics of "high torque at low speed and smooth operation at high speed." High torque at low speed is suitable for climbing, heavy loads, and reversing, while stable rotation at high speed is suitable for fast riding on flat roads.

It is suitable for household transportation, agricultural cargo transportation, and construction-site transportation, offering greater adaptability than a single direct-drive motor.

7. Universal Non-Destructive Installation

It is compatible with standard axle diameters, mounting widths, and mounting positions of three-wheel and four-wheel electric vehicles. No modification of the vehicle frame is required. It can directly replace existing direct-drive motors with reduction motors or replace old reduction motors without modification.

It supports 48V/60V full-voltage and full-power specifications, with drum brakes/disc brakes available, and supports customization of axle length and wire outlet length, making it suitable for complete vehicle applications, repairs, and modifications.

Product Parameters

Installation Precautions

1. Before installation, be sure to disconnect the main battery power supply to avoid short circuits that may damage the Hall sensor or controller.

2. Connect the wires strictly according to their corresponding colors. Incorrect or loose connections are prohibited to prevent motor vibration, failure to rotate, or reverse rotation.

3. When replacing a direct-drive motor, there is no need to modify the controller. It is directly compatible and easy to install and use.

4. Tighten the axle nuts after installation and adjust the wheel assembly to the center to avoid deviation or vibration during operation.

5. Conduct a low-speed no-load test first. Only after confirming that there is no abnormal noise, jamming, or abnormal heating should passengers or cargo be carried.

6. The motor supports daily protection against rain and water splashes. Deep-water immersion and direct high-pressure water-jetting at sealing areas are strictly prohibited.

7. Regularly ensure that the gear housing remains properly sealed to prevent gear rust and wear caused by water and sand ingress.

FAQ

Q: What is the difference between a planetary gear motor and an ordinary direct-drive motor? Which one is better?

A: Direct-drive motors have no reduction structure and are sufficient for flat roads, but they have weaker climbing performance and are more prone to overheating and demagnetization under heavy loads. Planetary gear motors increase torque through multi-stage reduction, significantly increasing torque, and are specifically designed to solve insufficient power when climbing steep slopes, carrying heavy loads, and transporting cargo. For mountainous areas, agricultural applications, construction sites, and frequent heavy-load use, the planetary reduction version is recommended. For purely flat-road transportation, a direct-drive model can be selected.

Q: Can the planetary gear motor directly replace the original direct-drive motor?

A: Yes, it can be directly replaced without modification! As long as the voltage is consistent, the mounting positions are compatible, and the controller is compatible, there is no need to modify the wiring, replace the controller, or modify the vehicle frame. It can be installed and used directly, making it an ideal upgrade solution for older models with insufficient power.

Q: Does the Planetary Gear Reduction Hub Motor consume more power than an ordinary motor?

A: No. Power consumption is basically the same under flat-road conditions; under climbing and heavy-load conditions, it can actually save more power. With transmission efficiency of up to 95% or above, the planetary gear system distributes the load evenly, generates less heat, and has lower energy loss, avoiding the high-speed pulling, excessive heat generation, and power consumption of direct-drive motors under heavy loads.

Q: Does the gear motor require regular maintenance and lubrication?

A: The motor is filled with high-temperature, long-life grease before leaving the factory and is sealed. Under normal household use, it is basically maintenance-free. For long-term, high-frequency heavy-load use in construction and agricultural applications, grease can be replenished by opening the housing every 1–2 years to further extend the service life.

Q: What causes abnormal noise or clicking sounds from the motor?

A: A slight gear-meshing sound from a new motor is normal. If there is sharp abnormal noise, jamming, or gear-impact sounds, it is usually caused by installation misalignment, wheel deformation, or gear wear due to water or sand ingress. Check the installation and sealing to resolve the issue.

Q: Does the gear motor have a longer service life than a direct-drive motor?

A: Under heavy-load conditions, its service life is significantly longer than that of a direct-drive motor. Direct-drive motors generate high temperatures under heavy loads, resulting in faster demagnetization and a greater risk of winding burnout. Planetary motors use gear reduction to increase torque, reducing the load on the motor itself and lowering temperature rise, making them less likely to suffer from demagnetization or burnout and more durable under harsh operating conditions.

Q: Does it support bulk customization and private-label production?

A: Yes. Full-specification customization is supported. Power, voltage, axle length, wire outlet configuration, and disc/drum brake structure can be adjusted according to requirements. OEM private-label production is supported, making it suitable for bulk supply to complete vehicle manufacturers and wholesale customers.
