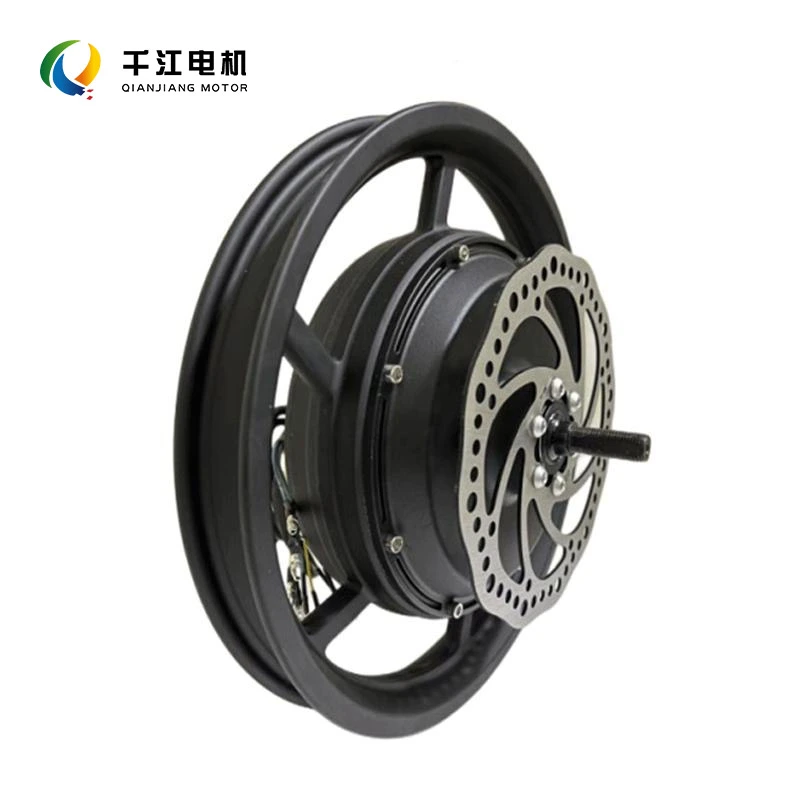

Folding Electric Bicycle Hub Motor

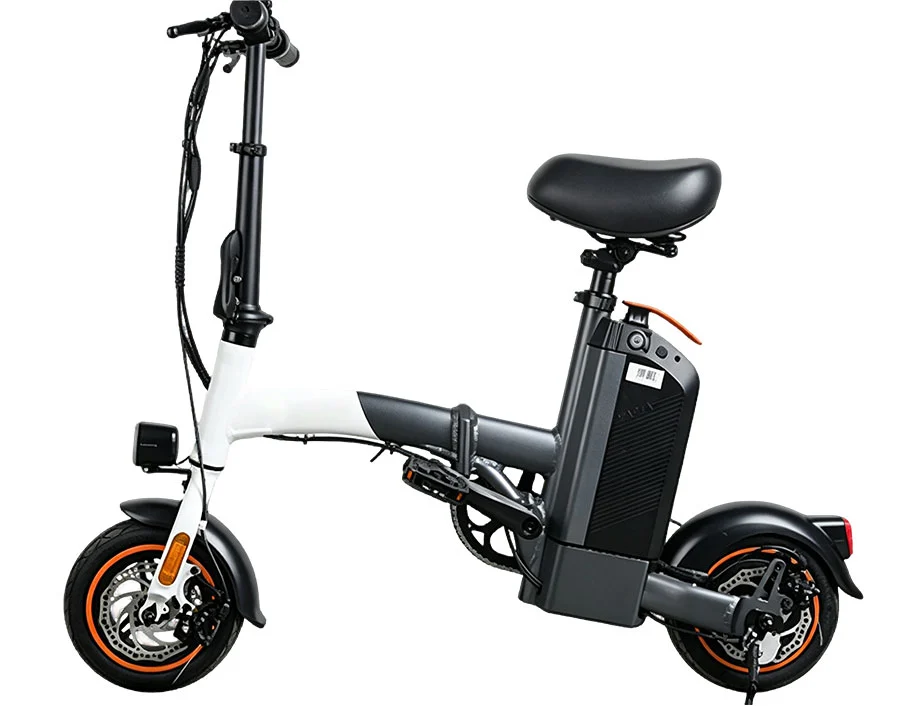

Specifically designed for portable folding electric bicycles, designated-driver folding bikes, and commuter lithium-battery folding bicycles. The lightweight Folding Electric Bicycle Hub Motor housing is designed to fit the structure of folding bicycles, providing smooth acceleration, quiet operation, low energy consumption, and stable load performance. It does not interfere with the frame or rub against the tires, making it an ideal motor for daily commuting, short-distance transportation, designated-driver travel, original motor replacement, repair and modification, and complete vehicle applications.

Core Product Advantages

1. Lightweight Design

Specially optimized for the compact body and tight frame structure of folding electric bicycles, the motor features a streamlined volume, light weight, and slim profile. It is compatible with mainstream 14-inch and 16-inch folding wheel assemblies. After installation, it does not rub against the frame or interfere with the fender and does not affect normal folding and storage. The entire vehicle remains lightweight and flexible, with no burden when carrying, storing, or transporting by car, fully matching portable travel needs.

2. High-Speed Brushless Pure Copper Windings

Using high-purity pure copper stator windings combined with high-density neodymium-iron-boron permanent magnets, the motor provides stable magnetic force and fast power response. It starts gently without sudden movement, accelerates linearly, and maintains stable cruising, solving common problems of folding motors such as starting vibration, weak acceleration, and unstable high-speed riding. It provides comfortable riding on urban roads and flat surfaces, making short distance commuting more efficient and effortless while balancing speed and riding stability.

3. High Conversion Efficiency and Low Energy Consumption

The magnetic circuit and winding structure are optimized for low-speed and constant-speed commuting conditions. Motor efficiency reaches more than 85%, with low energy loss and low heat generation. Compared with ordinary motors, it consumes less power and provides a more reliable range with the same lithium battery capacity. It is ideally suited for daily commuting, grocery shopping, short-distance transportation, and frequent designated-driver riding, significantly reducing charging frequency.

4. Brushless Maintenance-Free Structure

The permanent-magnet brushless direct-drive structure has no carbon-brush wear, no gear noise, and no need for regular oil changes or maintenance. It eliminates the frequent wear and high failure rate associated with traditional brushed motors, providing stable operation and extremely low failure rates. With virtually zero daily maintenance, it offers stronger durability for frequent long-term riding and significantly reduces maintenance costs.

5. Precision Sealing for Waterproof and Dustproof Protection

The motor uses thickened aluminum alloy housing, multi-layer sealing rings, and waterproof cable-routing technology. The entire motor is tightly sealed to effectively prevent rainwater, moisture, and road dust from entering. It can be used normally during rainy riding, road splashes, and light water accumulation, preventing moisture and short circuits affecting the windings and Hall components and making it suitable for all-weather urban commuting.

6. Quiet and Low-Noise Operation

The motor uses pure electromagnetic contactless drive with no mechanical friction noise, resulting in extremely low operating noise. There are no harsh abnormal sounds or resonance noises while riding. It operates quietly in residential communities, streets, and corridors without disturbing others, providing better commuting and transportation experience while meeting the quiet travel requirements of urban environments.

7. Multiple Specifications and Compliant Applications

Voltage options include mainstream 36V/48V lithium battery specifications. Power options include 250W (national-standard compliant), 350W, and 500W, meeting different requirements for compliant commuting, faster commuting, and light-load applications. Compatible with 14-inch and 16-inch folding wheel rims, with drum-brake and disc-brake versions available. It can be used as a replacement for 99% of household and designated driver folding electric bicycles on the market.

8. Standard Universal Mounting Positions

Using standard axle diameters, dropout dimensions, and mounting positions for folding bicycles, no frame modification, drilling, or grinding is required. The original wiring, brakes, and wheel assembly can be directly adapted. Whether replacing a failed motor, upgrading an older model, or providing complete vehicle components in bulk, the motor can be installed quickly and easily by individuals or repair shops.

Detailed Product Parameters

Installation Precautions

1. Before installation, always disconnect the main battery power supply to avoid short circuits that could damage the Hall sensors and controller.

2. The motor axle must be installed horizontally and centered, with the nuts on both sides tightened evenly to prevent wheel misalignment and riding vibration.

3. Connect the phase wires and Hall wires accurately according to their colors. Incorrect or loose connections are prohibited to prevent the motor from failing to rotate, reversing, or vibrating.

4. After installation, check the clearance between the wheel assembly and the frame to ensure that folding is smooth without jamming, tire rubbing, or contact with the protective panel.

5. First perform a low-speed no-load test to ensure smooth operation without abnormal heating or noise before carrying passengers for normal riding.

6. The motor supports daily rain and splash protection. Deep-water immersion and direct high-pressure water spraying at sealing areas are strictly prohibited.

FAQ

Q1: What is the difference between a folding bicycle motor and a regular electric bicycle motor?

A: The folding bicycle motor features a lightweight and ultra-thin customized design, with a smaller volume and lighter weight, specifically designed for compact folding frames. It does not interfere with folding and storage or rub against the frame or protective panels. Regular electric bicycle motors tend to be heavier and thicker. When installed on folding bicycles, they may interfere with the housing, prevent normal folding, increase vehicle weight, and affect portability.

Q2: How should I choose between 250W/350W/500W?

A: For pure urban flat-road commuting with a focus on compliance and energy efficiency, choose 250W; for daily commuting with occasional speed bumps and slight slopes, choose 350W; for frequent climbing, carrying passengers, high-frequency designated-driver riding, and faster acceleration, choose 500W, which provides stronger power and faster acceleration.

Q3: Can 36V and 48V batteries or controllers be used interchangeably?

A: No. They cannot be used interchangeably. Voltage mismatch may cause severe motor overheating, demagnetization of the magnets, abnormal power output, and even damage to the controller and battery. The motor, battery, and controller must have matching voltage specifications to ensure stable and durable operation.

Q4: How can I solve problems such as the motor not rotating, vibrating, or reversing after power is connected?

A: 95% of these issues are caused by wiring problems. First check whether the Hall wires and phase wires are incorrectly connected, loosely connected, or disconnected. The motor itself has an extremely low failure rate. Reconnecting the wiring according to the correct color codes can restore normal operation.

Q5: Do you support bulk customization and private labeling?

A: Yes. We support bulk OEM private labeling and can customize cable length, axle length, and specification parameters. We can provide complete vehicle manufacturers and wholesalers with matching solutions and exclusive bulk quotations.
