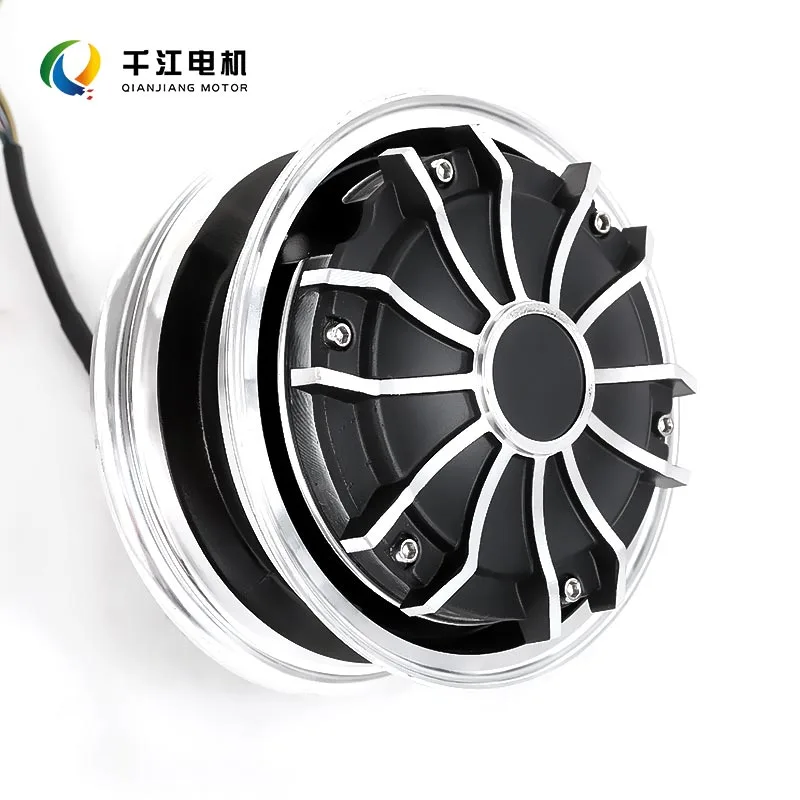

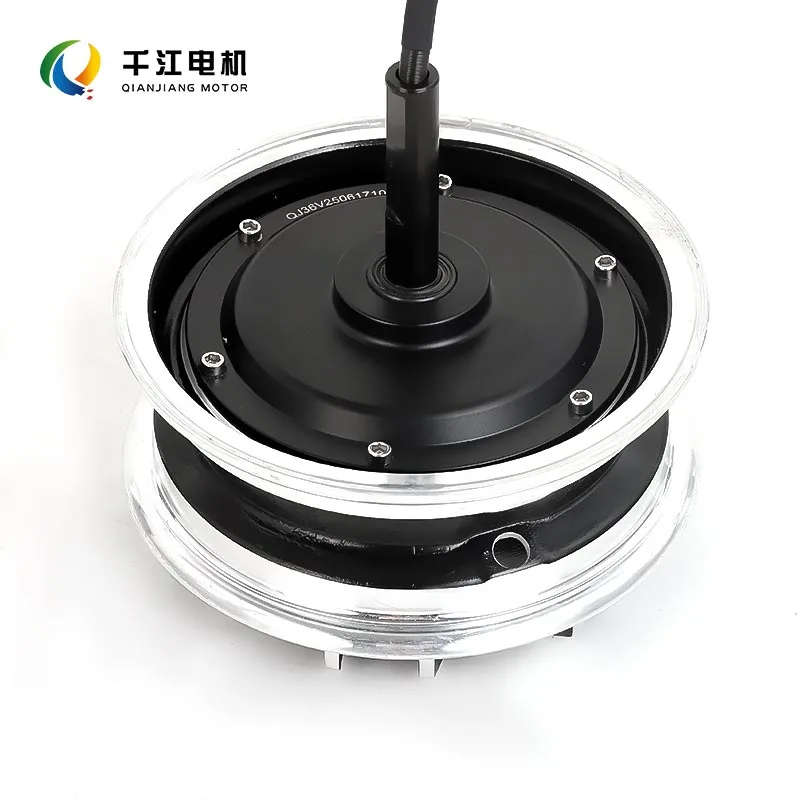

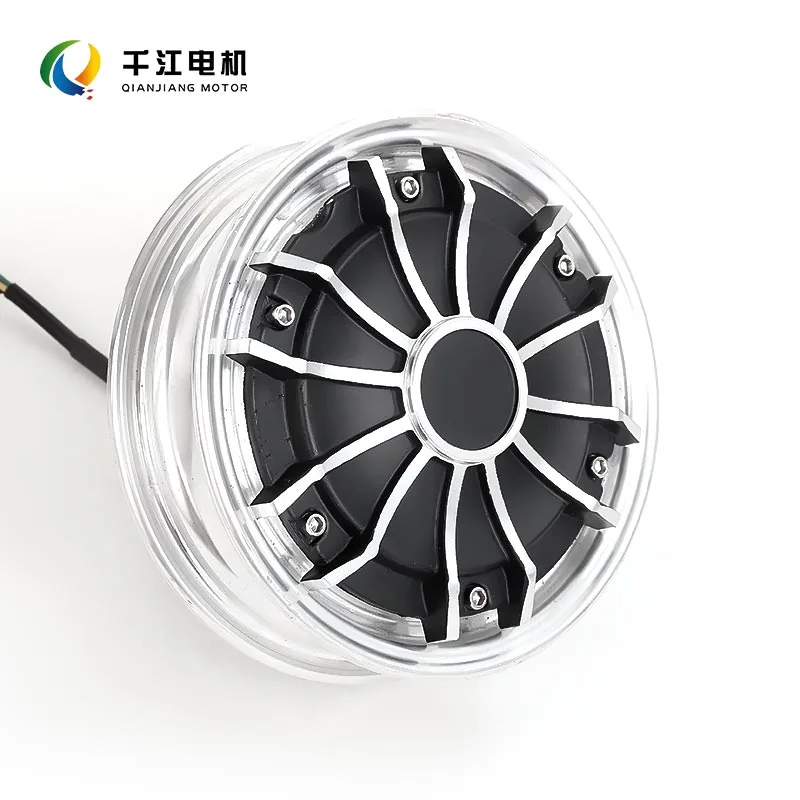

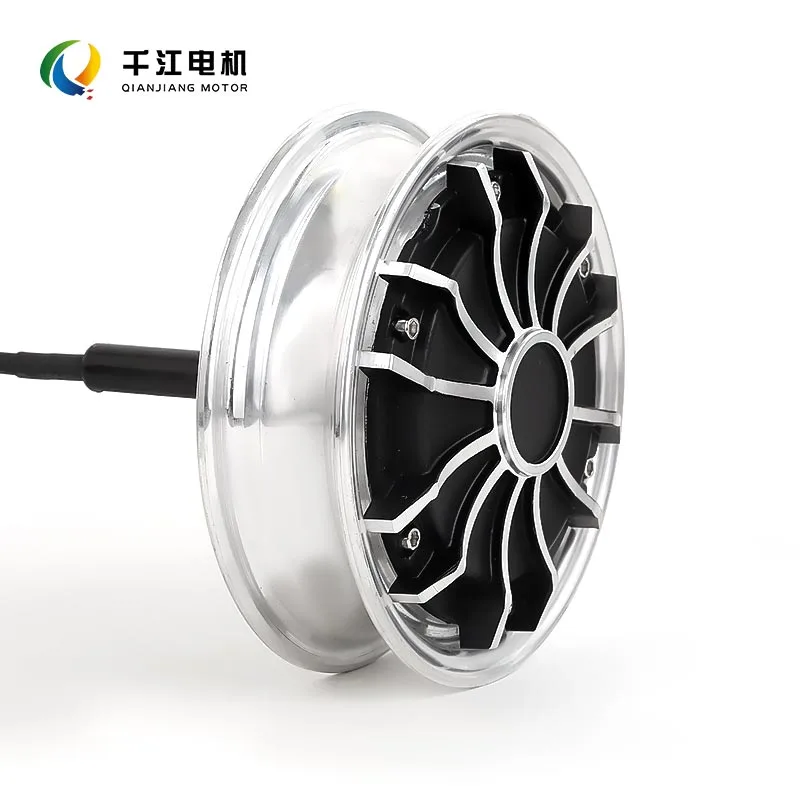

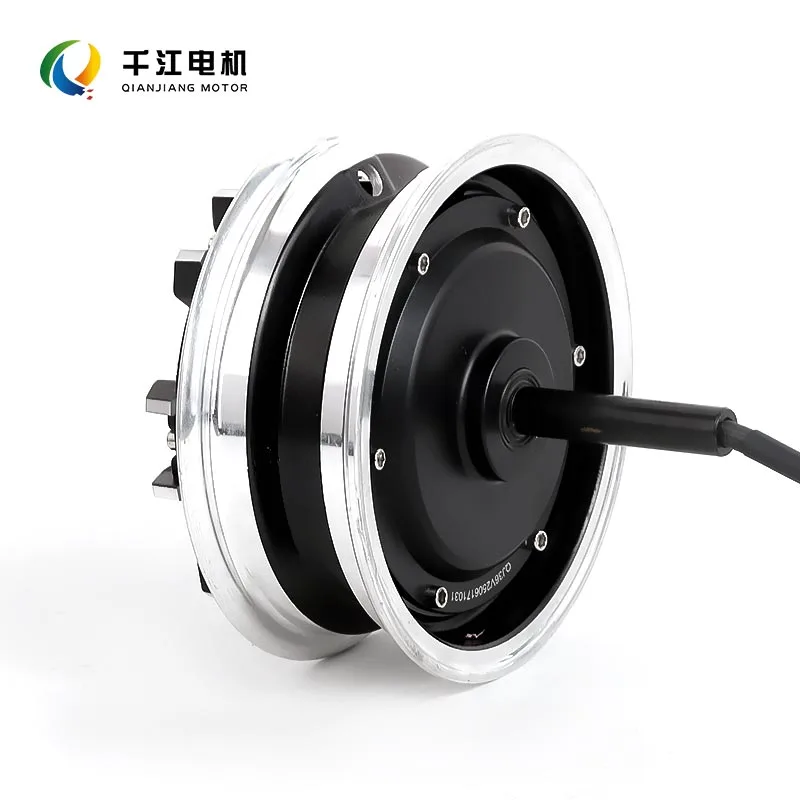

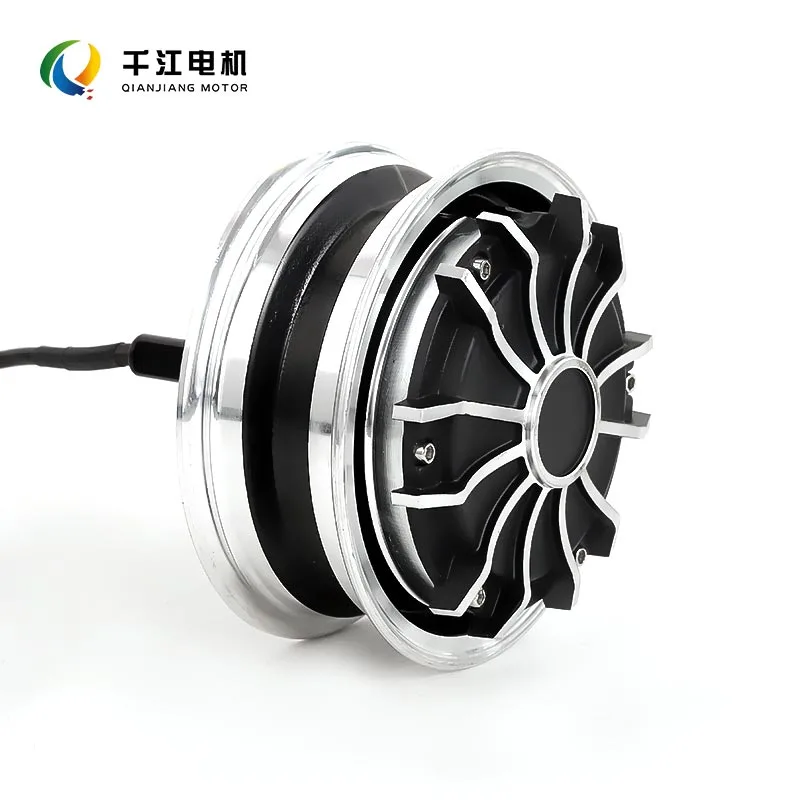

Gear Reduction Electric Scooter Motor

Unlike ordinary direct-drive motors, which have the disadvantage of high speed but insufficient torque, this gear reduction electric scooter motor features a built-in high-precision alloy helical gear reduction system.

Through an optimized reduction ratio, the motor's high rotational speed is converted into high torque, providing controllable speed and powerful output while effectively solving common problems such as high unloaded speed, weak hill-climbing performance, and wheel slipping under load.

● Significantly Increased Torque: Compared with a direct-drive motor of the same power rating, torque is increased by more than 40%. Strong low-speed power provides stable performance under passenger or cargo loads, with smooth and linear power delivery.

● Improved Hill-Climbing Performance: Easily handles urban inclines, long underground parking ramps, and gentle mountain roads. Even with an adult load, the scooter can climb steadily without rolling backward, stalling, or significant power loss.

● Smooth Start with Reduced Wheel Slip: Gear engagement provides direct and stable power transmission with minimal delay. Smooth starts on flat roads, sandy surfaces, and grass reduce wheel spin and provide better control for inexperienced riders.

Precision Quiet Gears

The motor adopts an enclosed alloy helical gear transmission system. Unlike conventional belt-drive systems and exposed gears, the gear set is enclosed within a high-strength alloy housing for precise engagement, smooth operation, and enhanced resistance to wear and impact.

● Quiet Operation: Helical gears provide a larger contact area and smoother transmission, reducing high-frequency noise associated with direct-drive motors and friction noise from belt systems.

● Enclosed Dust and Debris Protection: The fully enclosed gear chamber effectively isolates road dust, sand, and water, reducing gear jamming, abnormal noise, and transmission failure.

● High Wear Resistance: High-strength alloy gears provide excellent hardness, wear resistance, and impact resistance. They are designed to withstand daily vibration, high-speed operation, and hill climbing without easily chipping or slipping.

Pure Copper Brushless Core

The motor uses thickened pure copper winding coils combined with a brushless permanent-magnet drive system, providing excellent electrical conductivity, low heat generation, and high energy-conversion efficiency.

● Energy Efficient and Long Range: Low transmission losses allow electrical energy to be efficiently converted into mechanical power. Under the same battery capacity, range can be increased by 20%–30% compared with conventional motors.

● Low-Heat Operation: The brushless structure eliminates carbon-brush friction, carbon buildup, and excessive mechanical wear. Continuous high-speed operation and hill climbing generate less heat, reducing thermal power loss and motor damage.

● Maintenance-Free Brushless Design: No carbon brushes need to be replaced and no frequent maintenance is required, providing stable and reliable long-term operation.

All-Terrain Adaptability

The motor is optimized for multiple electric scooter applications, providing stable power on both urban paved roads and moderate outdoor terrain.

● Smooth Urban Commuting: Suitable for asphalt, concrete, and paved roads, with linear speed control and stable low- and high-speed operation.

● Improved Performance on Complex Terrain: Suitable for light gravel, grass, dirt roads, and uneven surfaces. High torque helps prevent wheel entrapment and improves obstacle-clearing capability.

● Stable Under Load: Reinforced power-transmission components support single-rider commuting, light two-person loads, and carrying personal luggage without significant power loss.

Precision Protection

The motor features a high-strength aluminum-alloy housing combined with precision sealing technology, providing a balance of heat dissipation, protection, and vibration resistance.

● Efficient Heat Dissipation: The aluminum housing incorporates a large heat-dissipation structure to quickly release operating heat and help maintain stable performance during continuous operation.

● Water, Dust and Splash Resistance: The sealed motor housing helps protect against rain, road splash, moisture, and everyday dust.

● Vibration and Impact Resistance: Internal gears and winding components are reinforced to withstand road vibration and minor impacts, maintaining stable performance during long-term use.

High Compatibility and Easy Installation

The gear reduction electric scooter motor adopts industry-standard mounting dimensions and interface specifications and is compatible with most 24V / 36V / 48V electric scooters on the market. It can directly replace conventional direct-drive or belt-drive motors without modifying the frame or wiring.

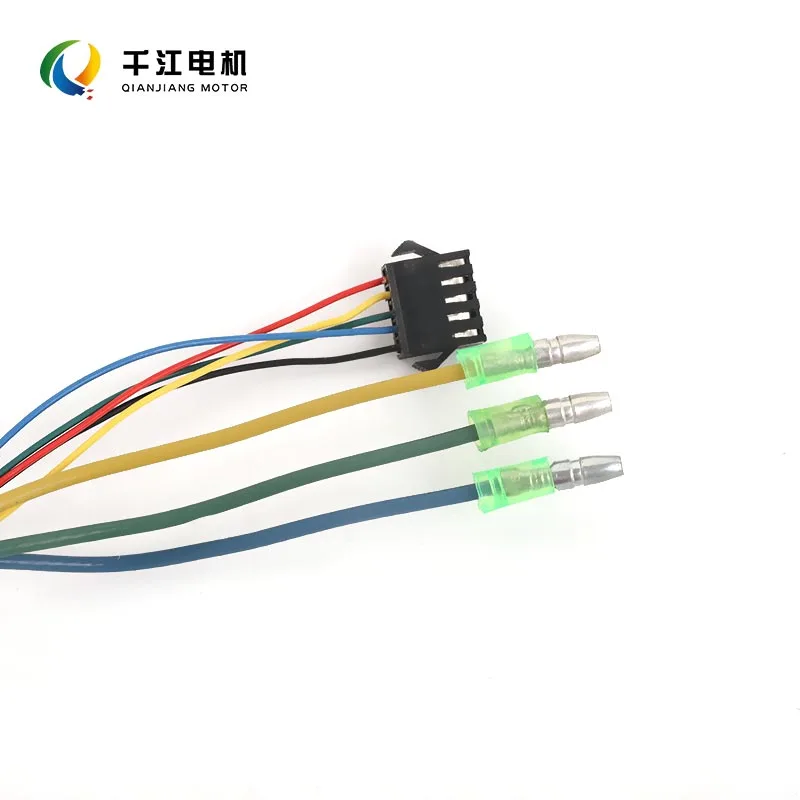

Hall and sensorless controller configurations are supported, providing broad compatibility with both new and existing electrical systems.

Product Core Specifications

Full-Scenario Applications

Daily Commuting: Suitable for commuting to work, campus transportation, short-distance shopping, and parcel collection, providing convenient and low-effort transportation.

Outdoor Riding: Suitable for park roads, suburban paths, and light off-road conditions, providing stable mobility across varied terrain.

Family Use: Suitable for adult transportation and youth mobility, with smooth and stable power delivery.

The motor is designed as an effective replacement for conventional direct-drive and belt-drive motors, addressing common issues such as insufficient torque, excessive noise, component wear, and poor hill-climbing capability.

FAQ

Q1: What is the difference between a gear reduction motor and a conventional direct-drive motor? Which is better?

A gear reduction motor provides significantly higher low-speed torque than a conventional direct-drive motor. Direct-drive motors typically provide higher rotational speed but lower torque, resulting in good flat-road performance but weaker hill climbing and load-carrying capability.

The gear reduction motor uses a reduction gear system to convert high motor speed into increased output torque, providing stronger hill-climbing performance, smoother starting, and better load capability. It is particularly suitable for urban areas with slopes and everyday passenger transportation.

Q2: What are the advantages compared with a belt-drive motor?

Belt-drive systems can experience belt aging, loosening, slipping, and abnormal noise and may require periodic belt replacement.

This motor uses an enclosed metal gear transmission, eliminating belt wear. It provides direct power transmission, reduced slipping, and better protection against water and dust. Under normal operating conditions, the enclosed gear structure is designed for significantly longer service life than conventional belt-drive systems.

Q3: Is the hill-climbing performance really better? What slope can it handle?

Yes. Hill climbing is one of the key advantages of the gear reduction design. Compared with a conventional motor of the same power rating, hill-climbing capability can be improved by more than 40%, depending on vehicle weight, battery voltage, controller settings, tire size, road conditions, and actual slope.

It is suitable for typical urban inclines, underground parking ramps, and residential slopes.

Q4: Is the motor noisy? Will the gears produce abnormal noise?

The motor is designed for quiet operation. The high-precision helical gear structure provides a larger contact area and smoother transmission, while the enclosed gear chamber helps reduce operating noise.

The gears are precision-finished and adjusted before shipment to minimize abnormal noise during normal operation.

Q5: Can it be used in rainy or dusty conditions?

Yes. The motor uses an IP54 protection design with an enclosed gear chamber and sealed motor housing. It provides protection against everyday dust, light splashing, and damp conditions.

Note: The motor is designed for normal splash resistance and should not be submerged in deep water or exposed directly to a high-pressure water jet.

Q6: Can it directly replace the motor on an existing electric scooter? Is installation difficult?

Yes. The motor is designed around standard mounting dimensions and wiring interfaces and is compatible with most 24V / 36V / 48V electric scooters.

In compatible applications, the original motor can be replaced without modifying the frame or wiring. Controller compatibility should be confirmed before installation.

Q7: How should I choose between 250W, 350W, and 500W?

● 250W: Suitable for youth riders, flat-road commuting, and light single-rider loads; economical, energy-efficient, and quiet.

● 350W: General-purpose option for daily transportation, flat roads, and moderate inclines.

● 500W: Higher-power option for frequent hill climbing, heavier loads, and outdoor riding, providing stronger torque and better obstacle-clearing capability.

Q8: Are the gears prone to damage or tooth breakage?

Under normal operating conditions, they are designed to resist tooth breakage and slipping. The motor uses high-strength, thickened alloy gears with high hardness, wear resistance, and impact resistance.

The enclosed transmission structure also protects the gears from external dust, sand, and impact. Final service life depends on load, operating conditions, controller settings, and maintenance.
