Electric Handcart Hub Motor Controller

Most ordinary low-cost controllers on the market use square-wave control, causing low-speed vibration, jerky operation, and serious motor noise. The cart may surge and stop while being pushed, resulting in a poor outdoor experience. This Electric Handcart Hub Motor Controller uses FOC field-oriented sine-wave control technology, providing smooth and refined current output and fully linear speed control, solving common problems of electric handcarts at the source.

● Ultra-Smooth at Low Speed: Matches normal walking speed. It does not shake, surge, or produce buzzing noise during low-speed pushing, making close-range precision transportation easier to control.

● Linear Acceleration Without Sudden Surges: The throttle responds smoothly with gradual acceleration and deceleration, eliminating sudden bursts of power. Even when fully loaded with heavy equipment, the cart is less likely to tip over, providing safer control.

● Quiet Operation: Eliminates high-frequency motor whistling, providing quiet experience during outdoor camping, park activities, and market use.

Outdoor-Specific Tuning

Specially optimized for camping, mountain areas, slopes, and stepped roads, the controller features intelligent slope detection + automatic speed stabilization and locking logic, effectively solving the safety risks of runaway carts and uncontrolled acceleration when carrying heavy loads downhill. It is also a core function required for electric handcarts.

● Automatic Anti-Rollback: When the system detects that the cart body is inclined downhill, it automatically stabilizes and locks the speed, preventing gravity-driven acceleration and allowing even a fully loaded cart to descend at a controlled speed.

● Smooth Slope Starting: Prevents rollback and jerking when starting uphill, providing continuous power output and easily handling regular slopes of up to 15° on grass, dirt roads, and gravel roads.

● Walking-Following Adaptation: The speed range precisely matches the pace of manual pushing, neither too fast nor too slow, making it easy for elderly users and beginners to operate.

Three-Speed Intelligent Adjustment

Equipped with three speed modes, the Electric Handcart Hub Motor Controller allows users to switch power output according to different needs, balancing range and load-carrying performance for various outdoor applications.

● 1st Gear Low Speed (Eco Mode): Suitable for flat roads, park walks, and light camping loads. Low-power operation significantly extends battery life.

● 2nd Gear Medium Speed (Standard Mode): Suitable for daily transportation, market shopping, and flat-road commuting. Balanced power output adapts to most regular scenarios.

● 3rd Gear High Speed (Off-Road Heavy-Load Mode): Suitable for sand, mud, uneven gravel roads, steep slopes, and heavy loads. Maximum power output provides stronger escape and off-road capability.

Nine-Level Safety Protection

Outdoor handcart operating conditions can be complex, involving bumps, water exposure, overload, motor stalling, and high temperatures. This controller incorporates a complete intelligent protection system that monitors electrical and operating conditions in real time and automatically limits current or cuts power in abnormal situations, helping prevent motor burnout, short circuits, and wiring damage.

● Stall Protection: When wheels become blocked by stones, stuck in mud, or completely immobilized, the controller automatically cuts power to prevent the motor from burning out.

● Overload/Overcurrent Protection: Limits current when carrying excessive loads or attempting difficult escape situations, protecting the battery, motor, and wiring.

● Low-Voltage/Undervoltage Protection: Automatically stops operation when the battery is low to prevent excessive battery discharge and extend battery life.

● High-Temperature/Overheat Protection: During long-term heavy-load operation or work under hot sunlight, the controller automatically reduces current when the temperature becomes too high, preventing overheating and burnout.

Precision Heat Dissipation and Waterproof Design

Designed specifically for harsh outdoor environments, the controller uses robust hardware with upgraded heat dissipation and protection, eliminating the fragility and high failure rate of ordinary controllers.

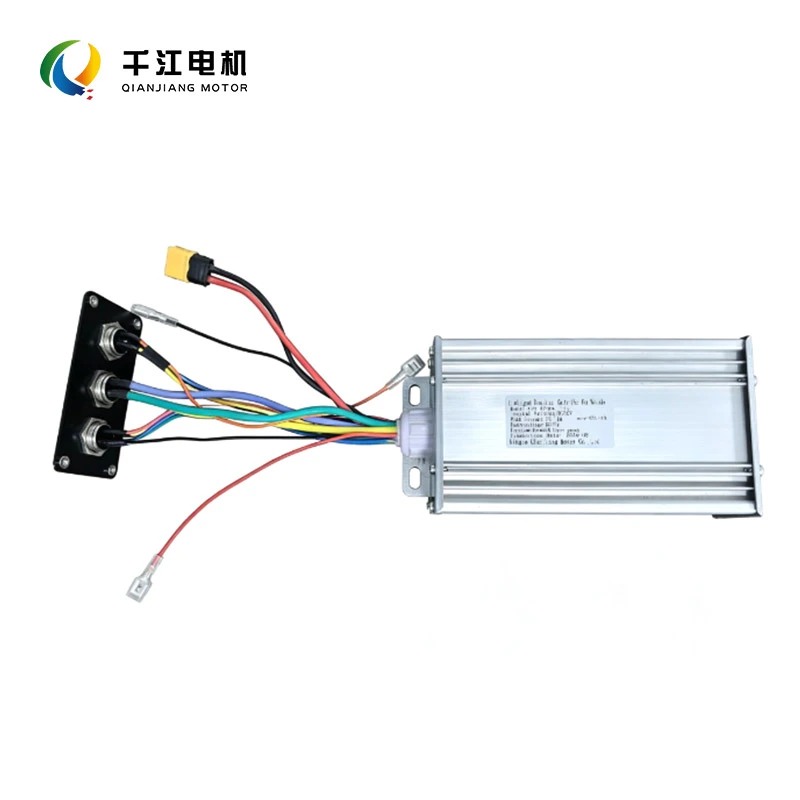

● Full Aluminum Heat-Dissipation Housing: One-piece die-cast aluminum alloy housing with a large heat-dissipation contact area quickly dissipates heat during continuous full-load operation, preventing heat accumulation, power reduction, and shutdown.

● Sealed Waterproof Structure: Internal potting and sealing technology combined with waterproof aviation connectors provides moisture, dust, and splash protection, handling rainy camping, muddy roads, and damp morning-dew environments.

● Shock and Vibration Resistance: Internal components are reinforced and secured, reducing the risk of solder failure or malfunction during outdoor bumps and off-road vibration, ensuring stable and durable long-term high-frequency use.

Product Installation

With strong compatibility and no complicated programming or debugging required, it is compatible with most electric handcart and outdoor camping cart power systems on the market, making it suitable for modification, replacement, repair, and new vehicle assembly.

● Dual-Mode Automatic Adaptation: Supports automatic identification of Hall and non-Hall motors and is compatible with both new and older hub motors.

● Error-Proof Connectors: Dedicated wiring connectors use an anti-misconnection design to prevent incorrect connections and motor damage, allowing beginners to install the controller.

● Wide-Voltage Compatibility: Compatible with 24V/36V/48V systems, covering household, outdoor, and light-duty engineering applications.

Intelligent Energy-Saving Algorithm

Equipped with dynamic power adjustment logic, the system intelligently distributes power according to load, speed, and road conditions in real time. It reduces power consumption under light loads while maintaining stable power under heavy loads, preventing unnecessary energy consumption. Compared with ordinary controllers, overall range is increased by more than 20%, providing sufficient power for full-day camping, repeated transportation trips, and long-distance outdoor travel without exaggerated range claims.

Core Product Parameters

Application Scenarios

Electric folding camping carts, outdoor fishing handcarts, garden transportation carts, market cargo handcarts, light-duty construction site transport carts, parent-child outdoor transportation carts, and other electric handcart equipment for modification and original replacement.
