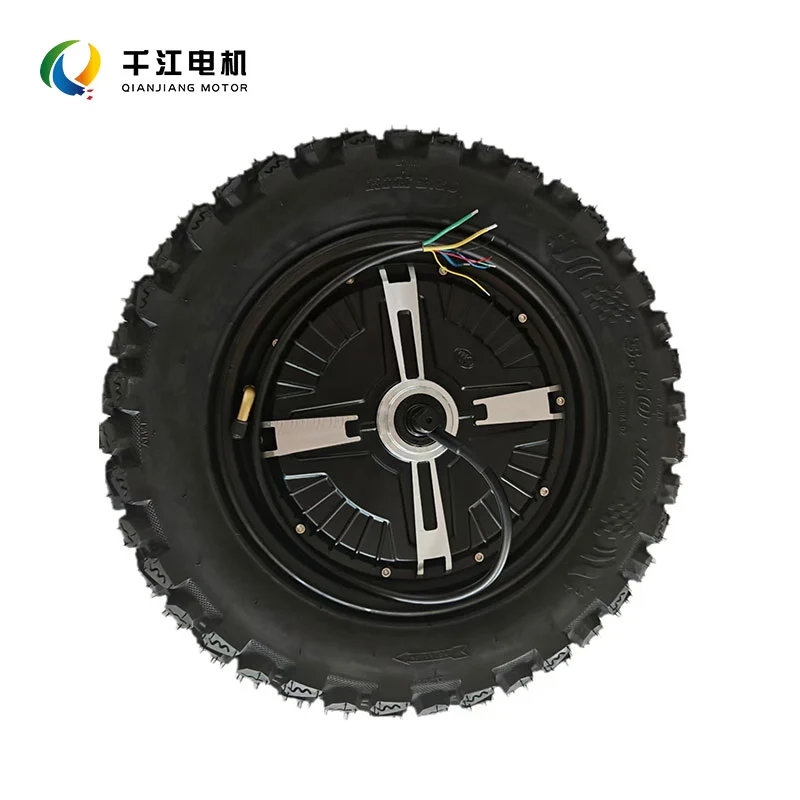

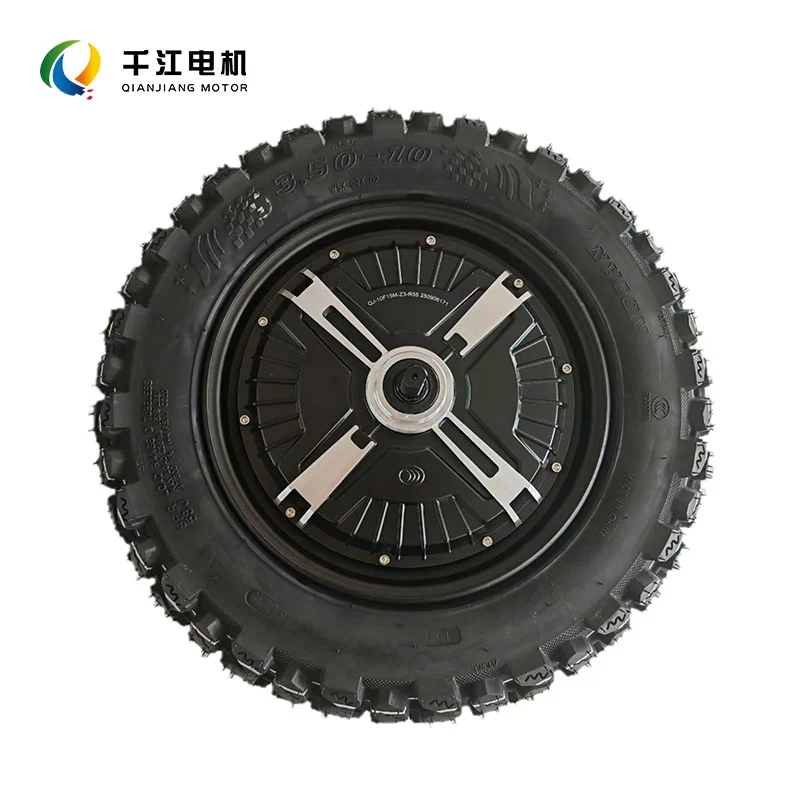

Agricultural Handcart Hub Motor

Ordinary civilian motors have weak power, poor resistance to mud, are prone to burning out, and are not durable enough! The Agricultural Handcart Hub Motor is specially tuned for demanding agricultural conditions such as muddy farmland, potholes and uneven roads, steep mountain slopes, narrow greenhouse paths, and frequent heavy-load operation.

With high torque at low speed, mud and water resistance, rugged durability, and maintenance-free operation, it is suited for various agricultural handcarts and transport dump carts, helping farmers save time and effort while improving work efficiency!

Five Core Advantages

1. Agricultural-Specific Tuning

Agricultural working conditions are complex. Wheel sinking in mud, steep field ridges, potholes, and dirt roads is common. Ordinary motors often have high speed but low torque, lack power under heavy loads, struggle on slopes, and are prone to stalling and overheating in mud.

This agricultural motor adopts an agricultural-grade high-torque brushless structure, with reinforced stator windings and increased magnetic flux, focusing on stable power at low speed and consistent performance under heavy loads, fully meeting the requirements of low-speed, heavy-load agricultural operations.

● Strong Mud and Farmland Recovery Capability: High torque output at low speed, optimized for soft, muddy farmland and loose soil. The wheels are less likely to spin or slip, allowing the vehicle to easily escape from mud, cross field ridges, and pass shallow ditches without stalling or getting stuck.

● Easy Climbing on Mountain and Field Slopes: Specially tuned climbing power easily handles 20° orchard slopes, farmland inclines, and steep terraced fields. Even when fully loaded with fruits, vegetables, fertilizers, or agricultural supplies, it can climb smoothly without rolling backward or losing power.

● Stable Power Under Concentrated Heavy Loads: Designed for the concentrated load characteristics of agricultural handcarts. Whether carrying soil, manure, fruits, vegetables, gravel, or other heavy materials, the motor provides continuous and stable power, eliminating heavy-load stalling and sudden power loss.

2. Brushless Maintenance-Free Core

This motor uses a pure brushless permanent-magnet core with no easily worn carbon brushes and virtually no friction wear. It is designed for farmers who need to work continuously throughout the day, providing worry-free, maintenance-free operation without interrupting busy farming seasons.

● Long Agricultural Service Life: No carbon brush wear or carbon buildup failures. Core components have almost no wear, allowing continuous operation throughout the day without overheating or stalling. Its service life is more than three times that of ordinary brushed motors, providing stable performance even under frequent seasonal agricultural use.

● Smooth Start and Stop to Protect Crops: Linear and smooth soft-start operation prevents sudden movement when starting and avoids abrupt acceleration. This reduces shaking and potential damage when transporting fruits, vegetables, and delicate crops, making it more suitable for careful agricultural handling.

● Low Energy Consumption and Lower Operating Costs: High power conversion efficiency and low energy loss mean less frequent charging during all-day agricultural transportation, saving electricity and reducing operating costs.

3. Agricultural-Grade Three-Way Protection

Farmland often contains mud and water, orchards have airborne dust, greenhouses are humid, and agricultural fields contain straw, leaves, and other debris. Ordinary motors can easily allow mud and water to enter, resulting in short circuits and burnout.

This motor adopts a fully enclosed, potting-sealed three-way protection process, providing industrial-grade protection against water, dust, and mud for demanding agricultural environments.

● Protection Against Mud and Standing Water: The fully sealed motor housing effectively prevents agricultural mud and water from entering the motor. It can handle rainy-day operations, muddy roads after rain, and vehicle washing without short circuits or failures.

● Protection Against Dust and Debris: Effectively blocks orchard dust, straw, leaves, and fine soil from entering the motor core, preventing dust buildup, jamming, and power loss, maintaining stable performance during long-term field operations.

● Shock and Vibration Resistance: Internal components are reinforced and securely fixed to withstand potholes, mountain roads, and field-ridge vibrations. Long-term high-frequency vibration is less likely to cause loose connections or failures, making the motor suitable for intensive agricultural operations.

4. Flexible Adaptation for Narrow Roads

Designed to address agricultural challenges such as narrow greenhouse rows, small orchard spacing, narrow field paths, and narrow farm lanes, the motor features a compact and lightweight design that does not protrude from the vehicle or interfere with steering.

It also uses standard dimensions, allowing farmers to perform non-destructive replacement without modifying the frame, drilling, or cutting.

● Designed for Narrow-Road Maneuverability: The compact motor body takes up minimal space, allowing easy movement through greenhouses, narrow orchard rows, field paths, and farm lanes with flexible steering and no obstruction.

● Easy Non-Destructive Conversion: Standard axle diameter and standard hub mounting positions are compatible with agricultural handcarts and dump carts on the market. Existing carts can be replaced directly in their original positions, and new carts can be assembled directly. No special technical experience is required for installation.

● Dual Controller Compatibility: Supports automatic adaptation to Hall and sensor less controllers, making it compatible with both new and existing agricultural electrical control systems. It is not limited by specific components or vehicle models, providing excellent conversion compatibility.

5. Long-Lasting Agricultural Range

The motor is optimized for agricultural transportation involving repeated trips, frequent starts and stops, and heavy-load operation. Its energy-efficiency logic provides power saving under light loads while maintaining power under heavy loads and intelligently reducing unnecessary energy consumption.

With the same battery capacity, the range can be increased by more than 25% compared with ordinary motors, meeting the needs of all-day orchard harvesting and transportation, multi-point farmland transport, and repeated material handling in greenhouses, eliminating frequent charging interruptions during busy farming periods.

Core Product Specifications

Full-Scenario Agricultural Applications

Orchard Farming: Fruit harvesting and transportation, fertilizer transportation, pesticide and tool transportation, and uphill cargo transportation in mountainous orchards;

Greenhouse Farming: Vegetable and fruit harvesting, substrate and fertilizer transportation, and material transport through narrow greenhouse paths;

Farmland Operations: Agricultural supply transportation, soil and manure transportation, and material transportation in terraced fields;

Livestock Farming: Feed transportation, manure cleaning and transportation, and agricultural material transportation.

Fully suitable for various agricultural transportation applications, significantly reducing manual labor intensity!

FAQ

Q: What is the difference between this motor and an ordinary civilian motor? Is it suitable for agricultural use?

The Agricultural Handcart Hub Motor is specially tuned for heavy-duty agricultural, muddy, steep-slope, and narrow-road applications, unlike ordinary recreational or camping motors. It focuses on high torque at low speed, mud and water resistance, vibration resistance, and stall resistance.

It is suitable for frequent continuous agricultural operations, resistant to mud, water, and sand, and capable of handling heavy loads without stalling. It is more durable and better suited to complex orchard and farmland conditions than ordinary motors.

Q: Can it be used normally on muddy orchard roads, loose soil, and steep field ridges?

Yes. The motor is designed for high torque at low speed, with optimized recovery performance for loose farmland soil, muddy roads, and uneven field ridges, reducing wheel spin and slipping. On mountain and terraced slopes of up to 20°, it can climb smoothly under full load.

When combined with an anti-rollback controller, it can prevent sudden acceleration and rollback when going downhill, providing safer agricultural operation.

Q: Will rain, mud, and water during field operations cause the motor to take in water and burn out?

No. It uses an agricultural-grade fully enclosed potting-sealed structure that effectively resists rainwater splashes, muddy water from roads, morning dew and moisture, dust, and sand. It can be used normally during rainy agricultural work, on muddy roads, and when washing the vehicle.

Note: It only provides protection against water splashes and general water exposure. Long-term immersion in standing water, deep mud, or deep puddles is prohibited.

Q: Does it require frequent maintenance when working continuously every day during the busy farming season?

No frequent maintenance is required. The pure brushless structure has no carbon brushes or easily worn friction components, eliminating the need for frequent carbon brush replacement and preventing carbon buildup and stalling problems found in traditional motors.

It is essentially maintenance-free and can support continuous operation during the busy farming season without frequent interruptions.

Q: Is it normal for the motor to become slightly warm during operation? Will it burn out?

Slight heating is normal during heavy-load uphill operation, mud recovery, and long periods of continuous operation. The motor uses reinforced high-temperature-resistant windings with good heat dissipation and is combined with multiple protections for overheating, overloading, and stalling through the controller. Under intensive agricultural operation, this helps prevent overheating and motor damage.

Q: Is it easy to turn in narrow greenhouse paths and small orchard rows?

Yes. The motor body is compact and does not protrude from the vehicle or occupy additional steering space. It supports flexible turning at small angles and is highly suitable for narrow greenhouse paths, small orchard rows, narrow field ridges, and farm lanes where ordinary vehicles have difficulty passing.

Q: Can I convert my old agricultural handcart myself? Is installation difficult?

Yes. Basic users can perform the conversion themselves without modifying the frame, drilling, or cutting. It uses industry-standard mounting dimensions and is compatible with most agricultural single-wheel and two-wheel handcarts on the market.

It can be replaced directly in the original position, with no complicated interface adjustment required, making installation simple and timesaving.

Q: How should I choose between the 350W and 500W versions?

350W Version: Suitable for flat greenhouse roads, light-load fruit transportation in orchards, and daily light agricultural material transportation. It offers low power consumption, durability, and high-cost performance.

500W Heavy-Duty Version: Suitable for mountainous orchards, steep terraced fields, heavy-load fertilizer transportation, and gravel or material transportation. It provides stronger power and better recovery and climbing performance. Farmers can choose the appropriate version according to their specific working conditions.
